Bottle height, body diameter, swing measurement equipment EH-2000
 |

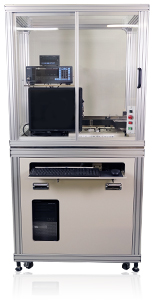

Bottle Height Body Diameter Swing Measurement EquipmentThis equipment is automatically measuring the PET bottle body diameter, height, neck swing and display the real-time data on computer display and total up the data. It enables to measure together with other measurement equipments to use the robot.
|
|---|

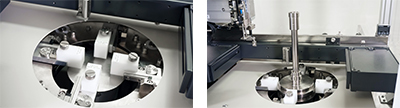

Characteristics
This equipment is available in the following 8 items to correct measure the body outer diameter.

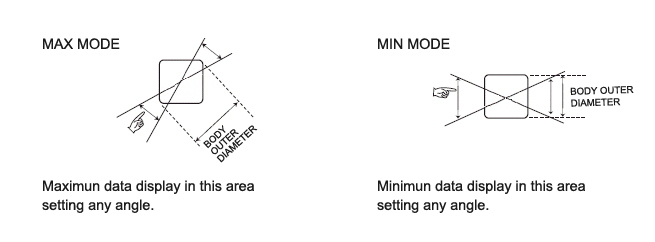

- MAX mode
- Data output for maximum data of setting angle range at any point
- MIN mode
- Data output for minimum data of setting angle range at any point
- Normal mode
- Data output of the setting angle after set the bottle
- Other bottles can be measured with some improvements, such as glass bottles.
- It is enable to measure together with other measurement equipments to use the robot
Spec
| Item | Content |
|---|---|
| Measuring system |
1. Body outer diameter: Laser. non-contact method 2. Total height: 2 Linear gauge. non-contact 3. Incline: Laser. non-contact method |
| Measurement method |
Body outer diameter: 1. Normal mode 2. MAX mode 3. MIN mode |
| Measurement size |
Height: 50 - 320mm Outer diameter：50 - 120mm |
| Measurement accuracy |
1. Body outer diameter / Height: singma 5 micrometer max, for 10 times of repeated master gauge measurement 2. Swing: sigma ±20 micrometer max, for 10 times of repeated master gauge measurement (Height 280mm position) 3. Depends on molding condition for the bottle |
| Measurement range Measurement point |
1. Body outer diameter, height, circumference angle Setting height：1-50points setting circumference angle: 1-12 points 2. Height: 1-8 points at any angle position from bottle top surface 3. Swing： 2-12 points at any height |
| Measurement time | Depends on measurement setting condition (measurement point) Example：10 body outer diameter, 4 height, 8incline. ...about 60 sec |
| Continuous Measurement number | 100 pieces |
| Measurement requirement set up | Max.100 types (model) setting condition save |
| Data representation |
Second decimal places (###.##) Note: Round off to two decimal places |
| Data output | Text file, CSV form |
| Data total up | Average, maximum, minimum, standard deviation(σ), R, Cp, Cpk |
| Re-measurement function | Available |
| A4 size | |
| Interface | RS-232C |
| Computer | Microsoft Windows 7 |
| Environment temperature | 10 - 40℃ |
| Environment humidity | 20 - 80% |
| Operation Environment | Without Dew forma, dust, corrosion gas |
| Size | W900 x H1850 x D700mm |
| Weight | 350kg max |
| Power consumption | 300W |
| Utility |
1. Selectable: AC100V ±10% 50/60Hz 2. Air: 0.4 - 0.5 Mpa min (One piece) |
| Accessory | Tool for setting center of bottle, calibration gauge |
